| Applications
Village Telco
Emergency Communication System
Hotel Telco
Hardware
Atheros AR2317 Soc
MIPS 4KEc processor 180MHz
8 MByte Serial Flash EEPROM
16 MByte RAM Wireless LAN
IEEE 802.11b/g
Frequency Band: 2.412GHz to 2.484GHz
Antenna Type: Intenal Omnidirectional PCB Antenna with I-PEX connector
Transmit EIRP Power: 1-24Mbit 20dBm or 36-54Mbit 17dBm

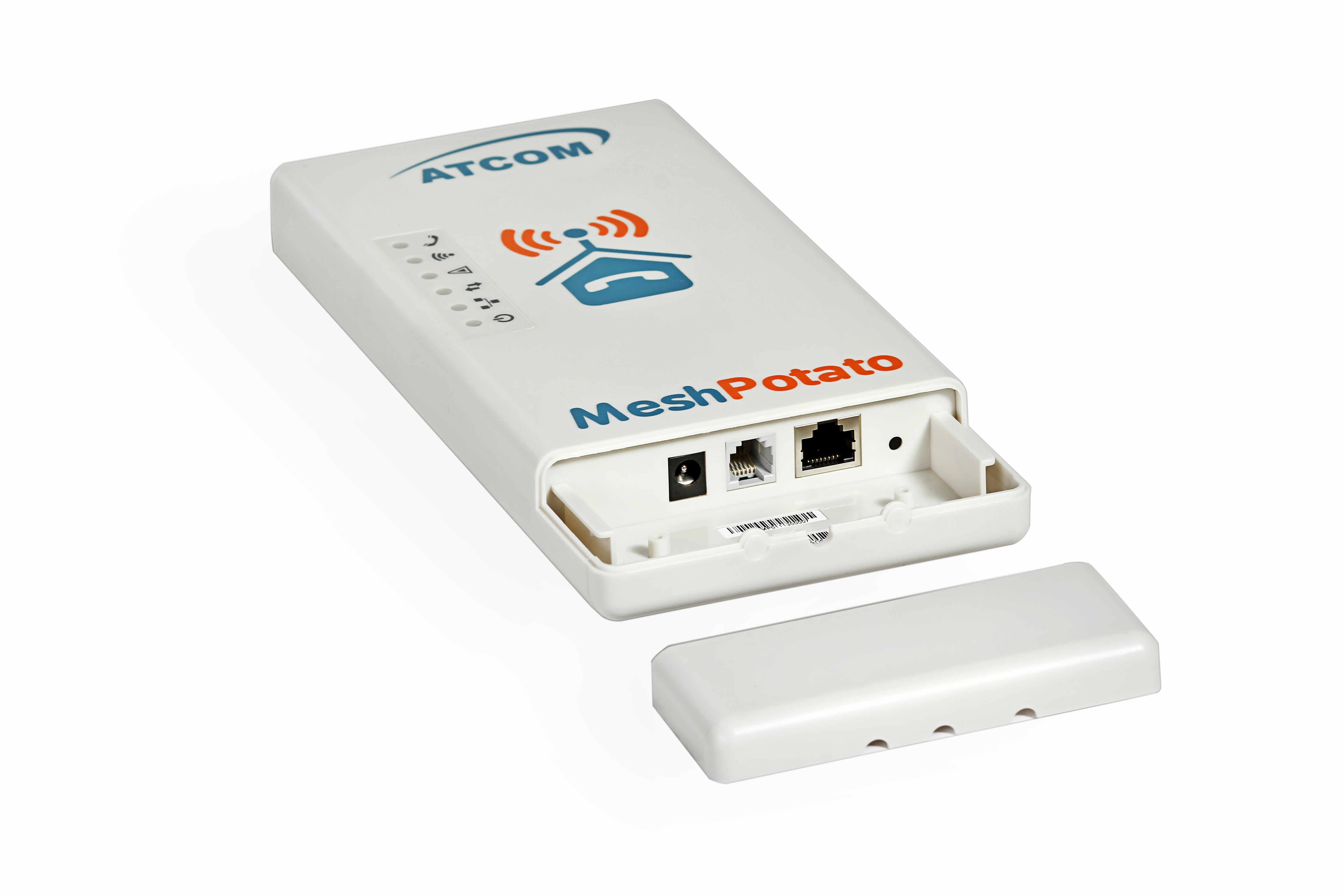

Interface
1 X RJ45 port
1 X RJ11 port
Firmware
Linux kernel 2.6.26.3
OpenWrt Kamikaze
B.A.T.M.A.N.D. mesh routing daemon
Asterisk 1.4.11
Electrical
Power Options: AC adaptor、Passive PoE or PoTL (Power over Telephone Line)
PoTL Wire Requirement: standard 4/6 core telephone cable
Input Power: 24 VDC 300mA
Power Consumption: 3 Watt
Passive PoE Effective Distance: 0-100 meters
PoTL Effective Distance: 0-50 meters
Protected Ports: DC, RJ11 phone, RJ45 Ethernet
Protection: overvoltage, reverse DC, nearby lighting, static electricity
Environmental
Operating Humidity: 5 to 95% Codensing
Operating Temperature: -20 to +70 degrees Celsius
|
