ASTERISK CARD AX2G4A
GSM Card
Features:
GSM Card
 AX2G4A
|

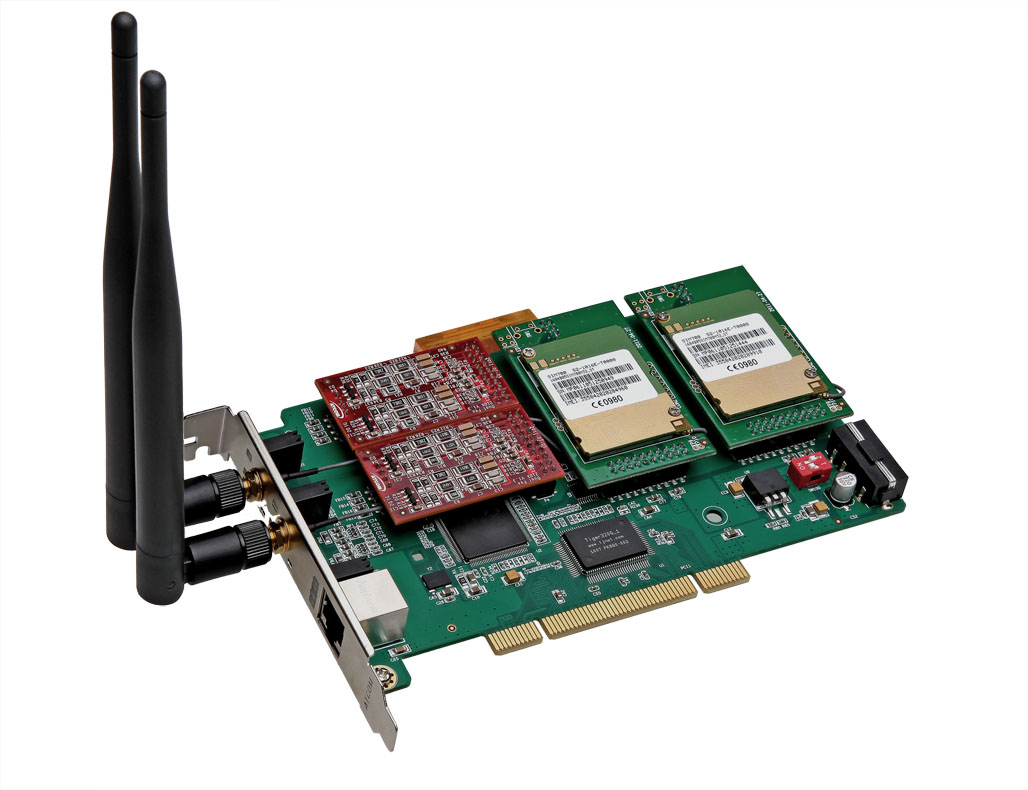

AX2G4A Asterisk card is the GSM channel PCI card that support up to two GSM channels and four FXO/FXS ports. Using AX2G4A card, open source Asterisk PBX and stand alone PC, users can create their SOHO telephony solution include all the sophisticated features of traditional PBX, and extend features such as voicemail in IP PBX. The card has 2 slots available for GSM module G01 (G01 modules are not included with the product). Each G01 module can receive a GSM SIM card. The card has also 2 slots available for dual port modules AX210X, AX210S or AX210XS. |
Features:
| Applications GSM and analog connectivity for PBX Mobile and analog PBX GSM and analog VoIP gateway SMS gateway GSM callback services Hardware requirement 500-Mhz Pentium III 64MB RAM 3.3V or 5V PCI 2.2 slot PCI card dimension: 174mm (length)*104 mm (height) Features Two GSM channels and four analog ports Bulk SMS sending Multi-language for SMS Change IMEI Monitor GSM signal strength by command and LEDs Monitor communication status by command line Send SMS by Asterisk CLI, and dial-plan Receive SMS Detect accurately when the called party answers the call 4 GSM quadbandchannels(850/900/1800/1900MHz) 1 SIM card per GSM channel DTMF detection Suitable for 3.3 volts and 5.0 volts 32 bit PCI slots PCI slot or 4-pin connector power feeding |
